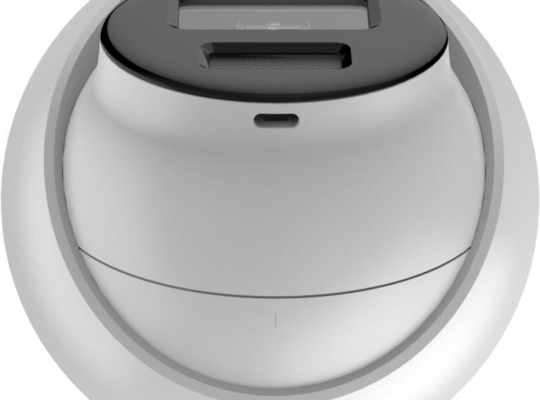

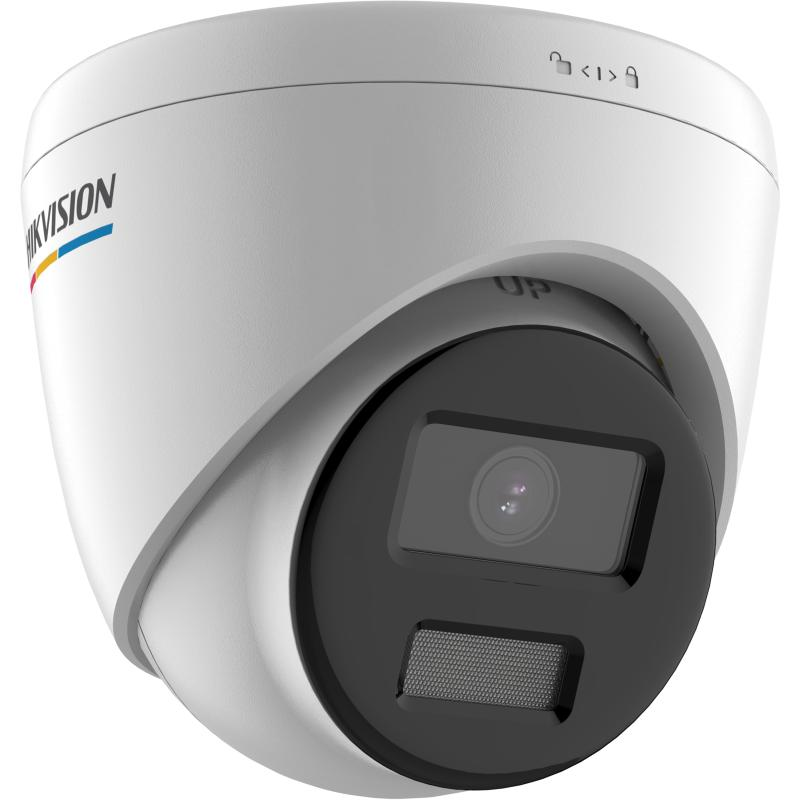

HIKVISION DS-2CD1347G0-L(C)(4.0) 4 MP ColorVu Fixed Turret Network Camera

Description

Lens
Focal Length & FOV
2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°

4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
Lens MountM12
FocusFixed
ApertureF1.0

DORI
DORI
2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m

Video
Max. Resolution2560 × 1440
Main Stream
50 Hz:

20 fps (2560 × 1440),

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440),

30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Region Of Interest (ROI)1 fixed region for main stream

Audio
Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-UF: 8 kHz/16 kHz
Environment Noise Filtering-UF: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
Built-In Microphone-UF: Yes
Hardware Reset-UF: Yes

General
Linkage MethodUpload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture
Camera MaterialMetal & Plastic
Camera DimensionØ109.9 mm × 103.6 mm (Ø4.33″ × 4.08″)
Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Camera WeightApprox. 380 g (0.84 lb.)
With Package WeightApprox. 600 g (1.32 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client LanguageEnglish, Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware VersionV5.5.122
Power Consumption And Current
12 VDC, 0.4 A, max. 5 W

PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply
12 VDC ± 25%

PoE: 802.3af, Class 3
Power InterfaceØ5.5 mm coaxial power plug

Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
