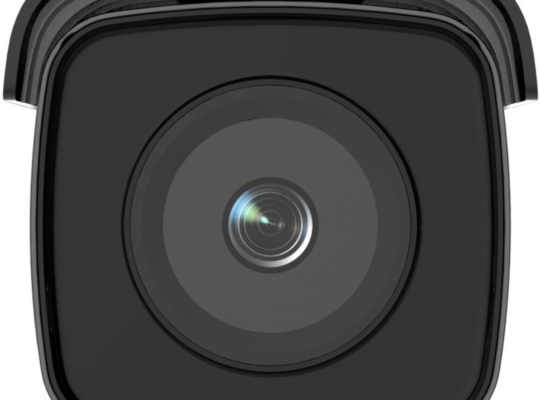

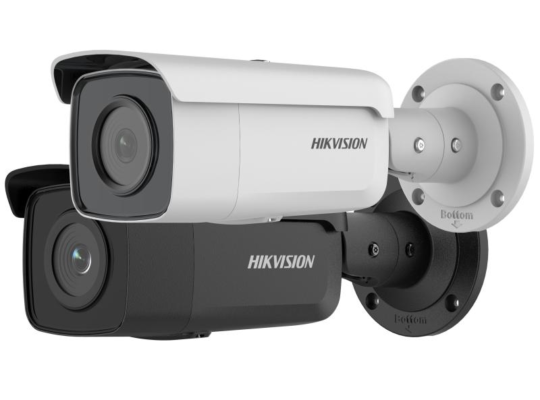

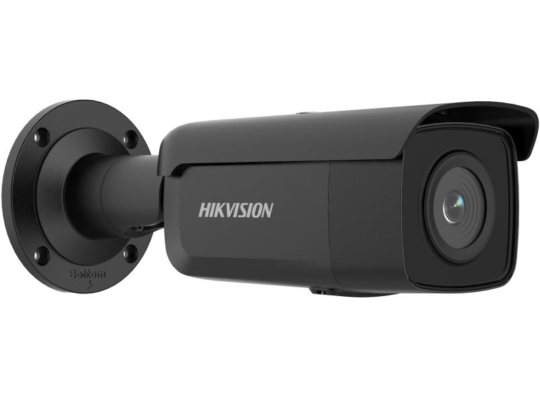

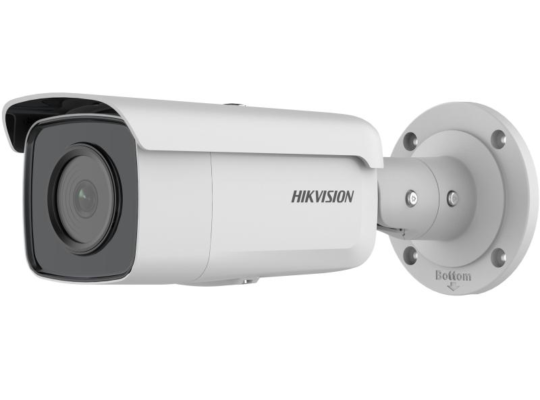

HIKVISION DS-2CD2T66G2-2I(C)(2.8) 6 MP AcuSense Fixed Bullet Network Camera

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°

2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m

4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

*Third stream is supported under certain settings.

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

Up to 32 users

3 user levels: administrator, operator, and user

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE10+,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

-2I:

12 VDC, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, max. 9 W

-4I:

12 VDC, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, max. 12 W

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

KC: KN32: 2015, KN35: 2015

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
