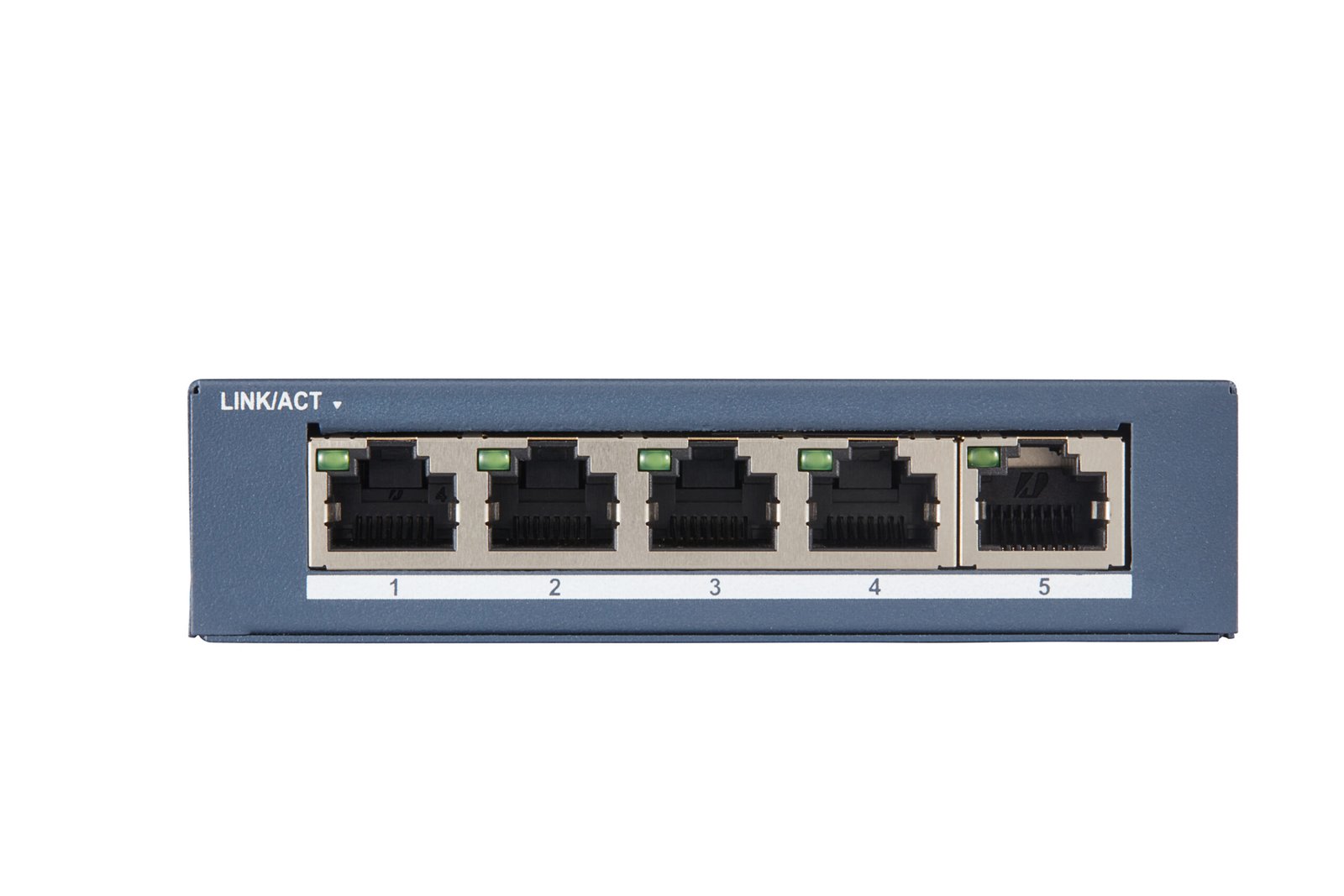

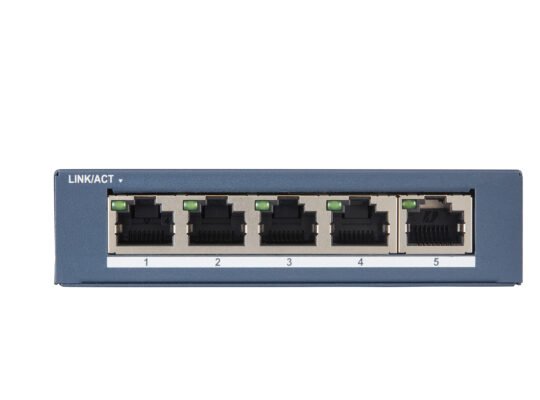

Port TypeRJ45 port, Full duplex, MDI/MDI-X adaptive
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding ModeStore-and-forward switching
MAC Address Table2 K
Switching Capacity10 Gbps
Packet Forwarding Rate7.44 Mpps
Internal Cache1 Mbits
General
Dimensions (W × H × D)103 mm × 25.6 mm × 61.1 mm (4.1” × 1.0” × 2.4”)
ShellMetal material, fan-free design
Gross Weight0.28 kg (0.61 lb)
Net Weight0.15 kg (0.30 lb)
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
Storage Humidity5% to 95% (no condensation)
Power Supply5 VDC，1 A
Approval
EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 15)
SafetyUL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2025)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2014)
