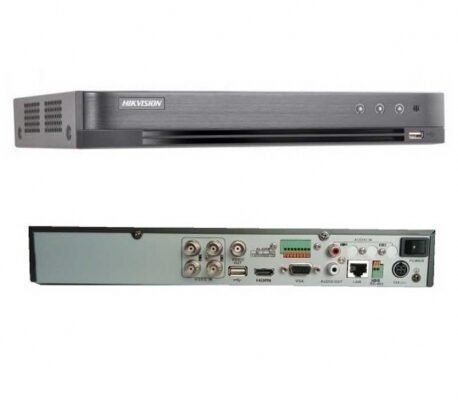

HIKVISION DS-7204HQHI-K1(B) 4-ch 1080p 1U H.265 Balun DVR

Main stream:

When 1080p Lite mode is not enabled:

For 4 MP stream access:

4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access:

1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode is enabled:

4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

When 1080p Lite mode is not enabled:

4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF;

When 1080p Lite mode is enabled:

4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF

1-ch (up to 5-ch)

Enhanced IP mode on:

2-ch (up to 6-ch), each up to 4 Mbps

Up to 6MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

*: The 3 MP signal input is only available for channel 1.

1,RJ45 10M/100M self-adaptive

Ethernet interface
