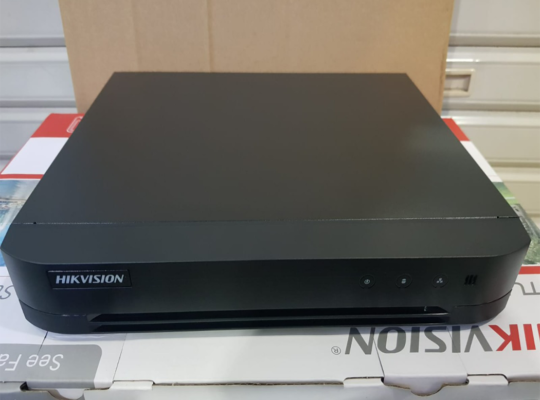

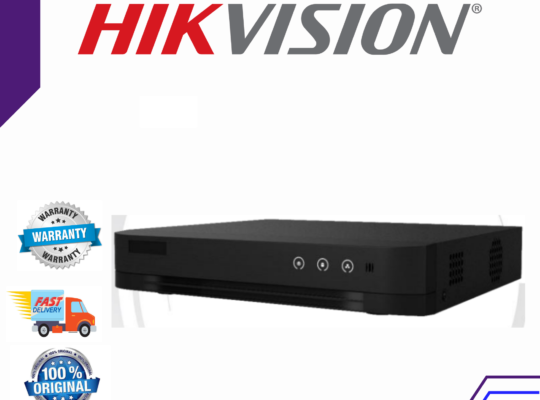

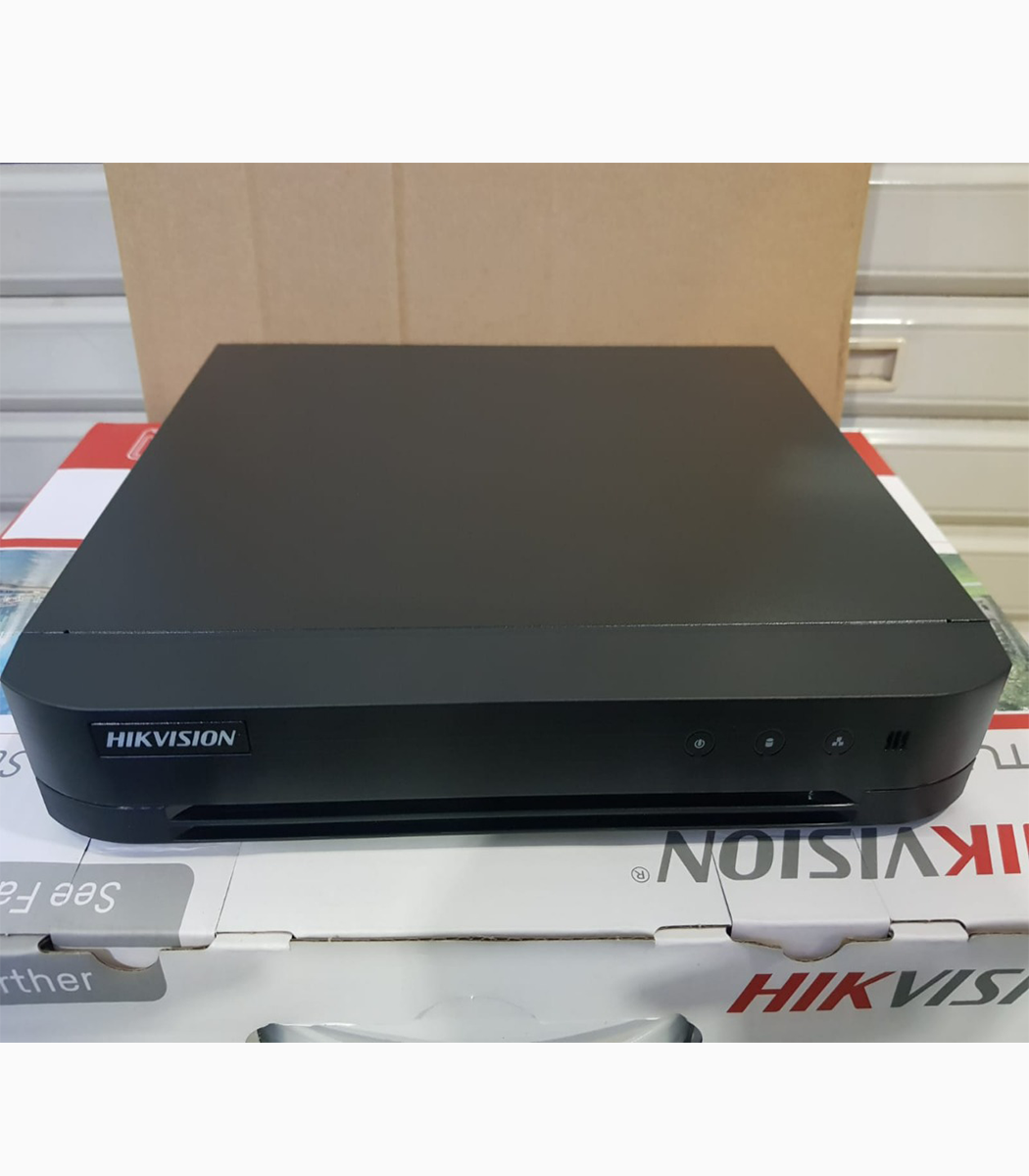

HIKVISION DS-7208HQHI-K1/E(S) 8-ch 1080p 1U H.265 DVR

When 1080p lite mode is not enabled:

4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

When 1080p Lite mode is enabled:

4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Main stream:

When 1080p Lite mode is not enabled:

For 4 MP stream access:

4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access:

1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode is enabled:

4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

2-ch (up to 10-ch)

Enhanced IP mode on:

4-ch (up to 12-ch), each up to 4 Mbps

Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output

VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
