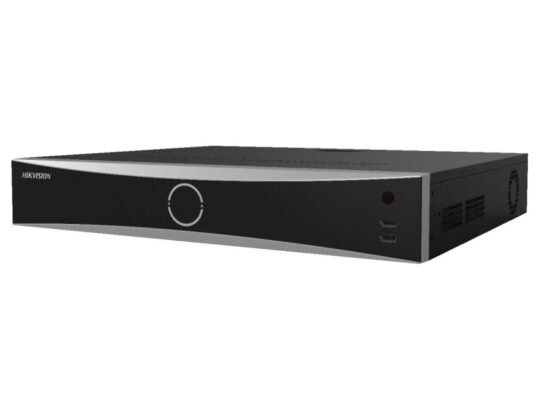

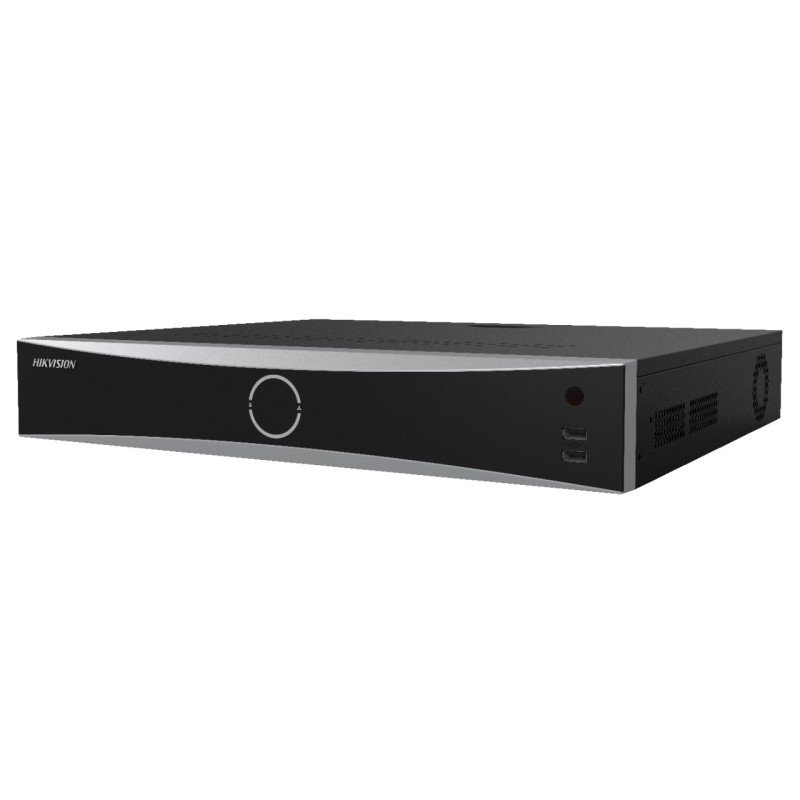

HIKVISION DS-7732NXI-K4/16P 32-ch 1.5U 16 POE K Series AcuSense 4K NVR

Posted:September 8, 2023
Views:71

100 Emilio Aguinaldo Hwy, Dasmariñas, 4114 Cavite, Philippines

₱26,820.000 (Fixed)

Type : Sell

Condition : New

Warranty : 1 Year & Up Warranty

Brands : Hikvision

Compatible Devices : Camera

ad type

Sell

Phone : Click to view

Description

Intelligent Analytics
AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition
Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection And Analytics Performance1-ch, 8 MP
Face Picture Comparison4-ch

Motion Detection 2.0
By DeviceAll channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels

Perimeter Protection
By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels

Video And Audio
IP Video Input32-ch
Incoming Bandwidth256 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA independent output
CVBS OutputN/A
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )

Decoding
Decoding FormatH.265/H.265+/H.264+/H.264
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

Network
Remote Connection128
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface16
Power≤ 200 W
StandardIEEE 802.3af/at

Auxiliary Interface
SATA4 SATA interfaces
CapacityUp to 10 TB capacity for each HDD
Serial Interface2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out16/4 (16/9 is optional)
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12VN/A (optional to support)
DC 12VN/A (optional to support)

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply100 to 240 VAC, 50 to 60Hz
Consumption≤ 20 W (without HDD and PoE off)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10 to 90 %
Dimension (W × D × H)445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
Weight≤ 5 kg (without HDD, 11 lb.)

Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
