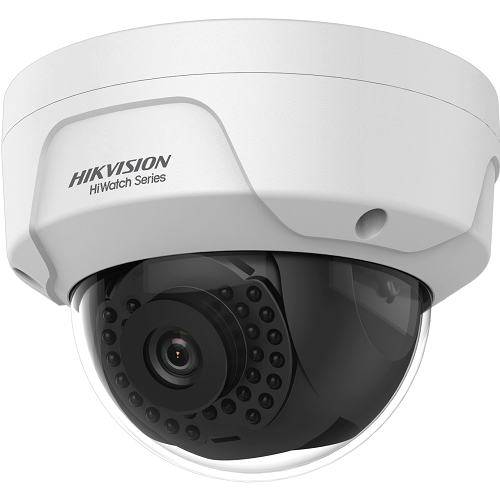

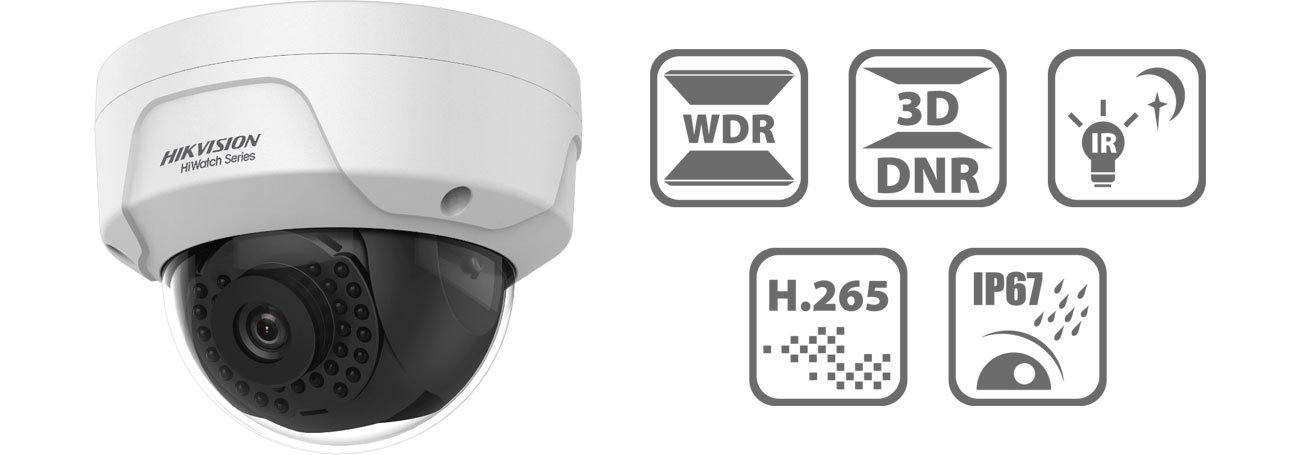

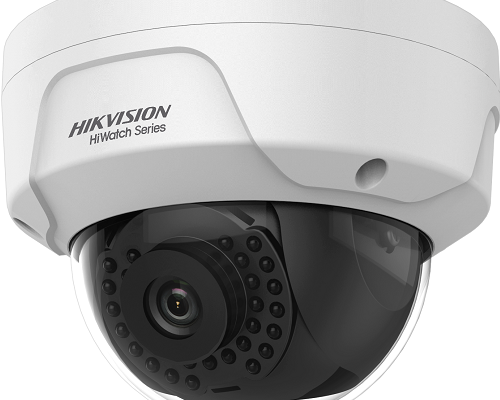

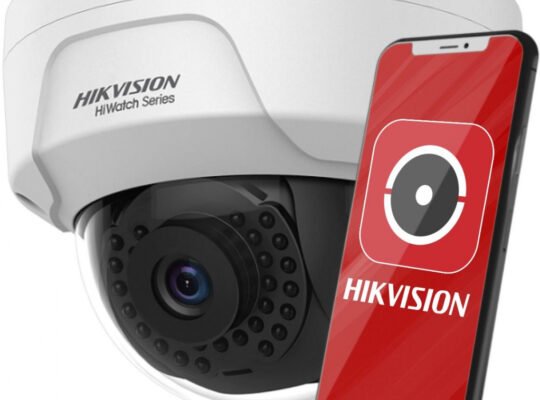

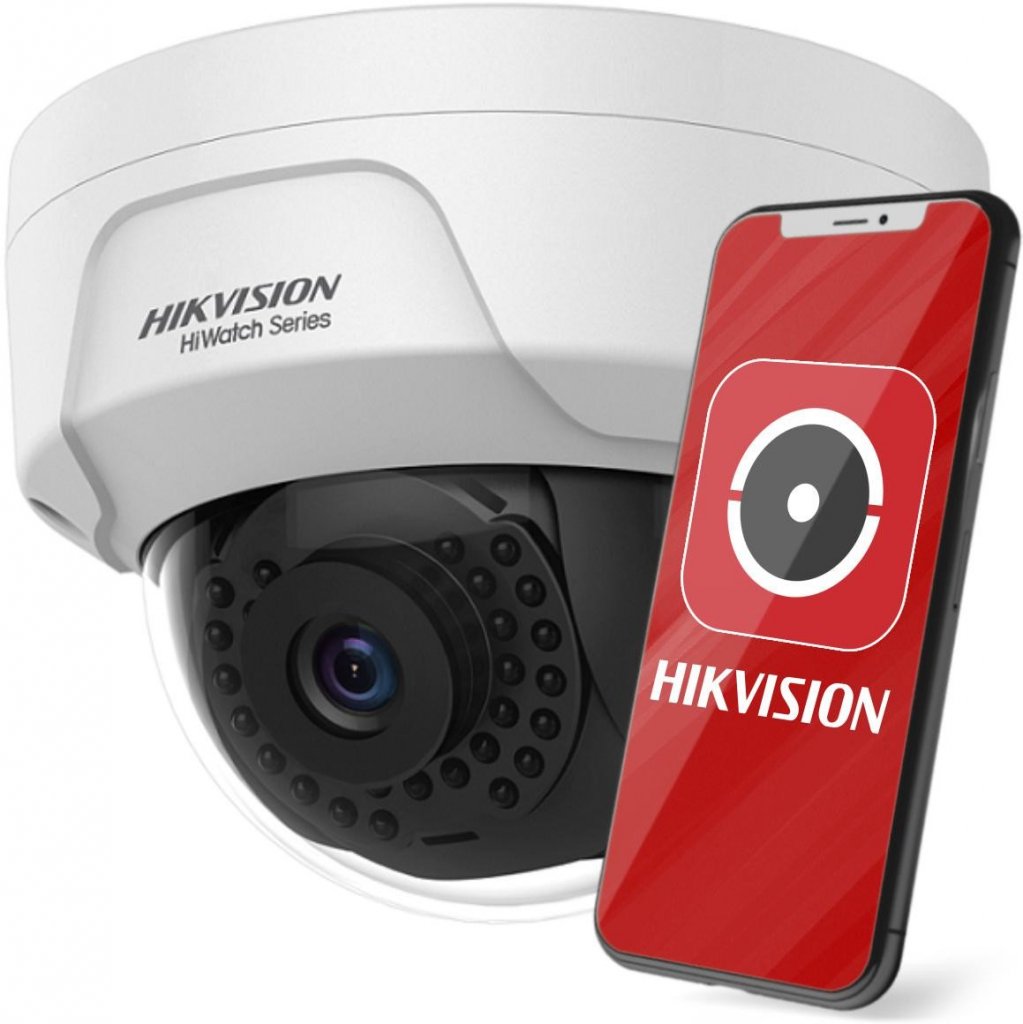

HIKVISION HWI-D140H(C)(4.0)4.0 MP IR Network Dome Camera

CameraAppearanceDomeImage Sensor1/3″ progressive scan CMOSMin. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)Shutter Speed1/3 s to 1/100, 000 sSlow ShutterYesAuto-IrisNoDay & NightIR cut filterDigital Noise Reduction3D DNRWDR120 dBAngle AdjustmentPan: 0° to 355°, tilt: 0° to 75°LensFocal Length2.8 mm, 4 mmApertureF2.0FocusFixedAngle of view2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°Lens MountM12IRIR RangeUp to 30 mWavelength850 nmCompression StandardVideo CompressionMain stream: H.265/H.264
Sub stream: H.265/H.264/MJPEGH.264 TypeBaseline Profile/Main Profile/High ProfileH.264+Main stream supportsH.265 TypeMain ProfileH.265+Main stream supportsVideo Bit Rate32 Kbps to 8 MbpsSmart Feature-SetRegion of Interest1 fixed region for main stream and sub-streamImageResolution4MPMain Stream Max. Frame Rate50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)Sub-stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)Image EnhancementBLC, 3D DNRImage SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browserDay/Night SwitchAuto, scheduledNetworkAlarm TriggerMotion detection, video tampering alarm, illegal loginNetwork StorageNAS (NFS, SMB/CIFS)ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, BonjourGeneral FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filterAPIONVIF (PROFILE S, PROFILE G), ISAPISimultaneous Live ViewUp to 6 channelsUser/HostUp to 32 users
3 levels: Administrator, Operator and UserClientiVMS-4200, Hik-ConnectWeb BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51InterfaceCommunication Interface1 RJ45 10M/100M self-adaptive Ethernet portGeneralOperating Conditions-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)Power Consumption12 VDC, 0.5 A, Max: 5.5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 7 WIngress Protection levelIP67Impact ProtectionIK10MaterialBubble: plastic, front cover: plastic, bottom base: metalDimensionsCamera: Ø 111 mm × 82.4 mm (Ø 4.4″ × 3.2″)
With package: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)WeightCamera: approx. 410 g (0.9 lb.)
With package: approx. 610 g (1.3 lb.)
