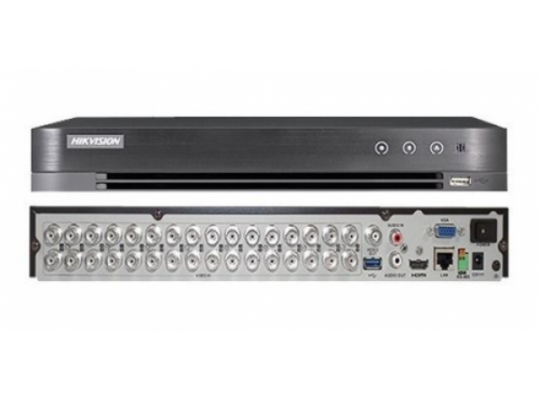

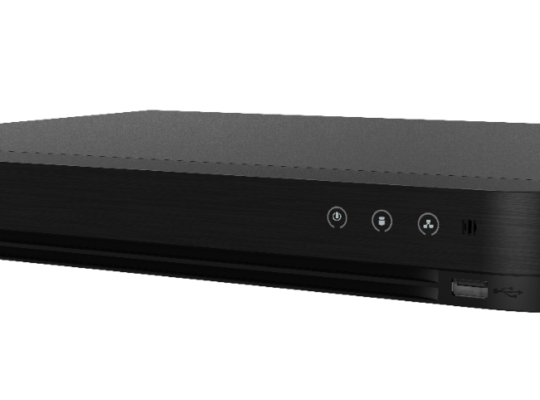

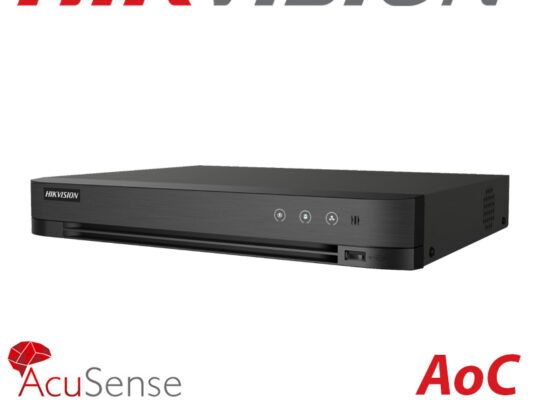

HIKVISION iDS-7232HQHI-M2/S(E) 32-ch 1080p 1U H.265 AcuSense DVR

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

When 1080p Lite mode is not enabled:

4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Main stream:

When 1080p Lite mode not enabled:

For 4 MP stream access:

4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

For 1080p stream access:

1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

When 1080p Lite mode enabled:

4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

2-ch (up to 34-ch)

Enhanced IP mode on:

8-ch (up to 40-ch), each up to 4 Mbps,

Up to 6 MP resolution,

Support H.265+/H.265/H.264+/H.264 IP cameras

32-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

*: The 3 MP signal input is only available for channel 1/2/3/4.

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

HDMI/VGA simultaneous output

1,RJ45 10/100/1000 Mbps self-adaptive

Ethernet interface

Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0
