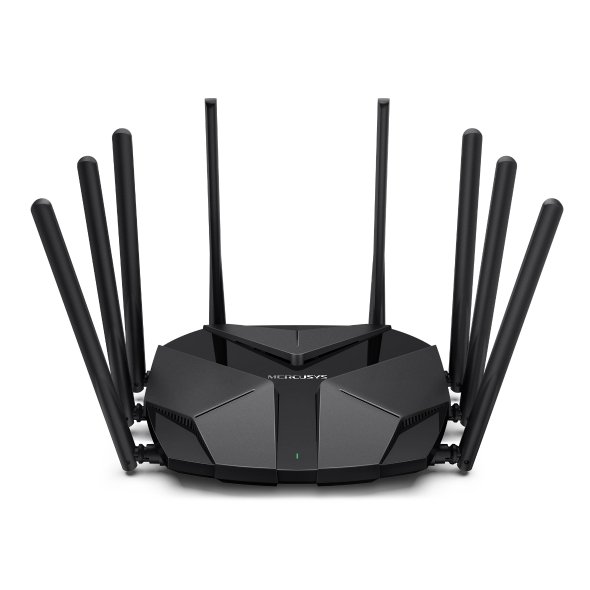

MERCUSYS MR90X AX6000 8-Stream Wi-Fi 6 Router

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

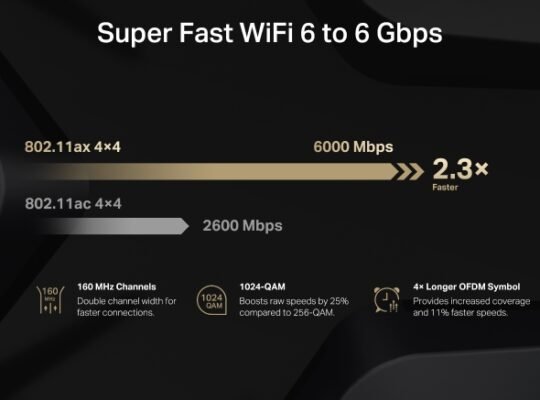

4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)

11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax VHT20 MCS11:-67dBm
11ax VHT40 MCS11:-64dBm
11ax VHT80 MCS11:-61dBm

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (band1、 band2)
5 GHz < 30dBm (band3)

WPA / WPA2-Personal, WPA2 / WPA3-Personal

Enable/Disable Wireless Radio, WMM

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Access Control
Local Management
Remote Management

Server, DHCP Client List

Port Forwarding, Port Triggering, UPnP, DMZ

SPI Firewall, IP and MAC Address Binding

2.4 GHz Guest Network, 5 GHz Guest Network

OpenVPN, PPTP supported

8.2 × 6.8 × 1.6 in
(209 × 172.2 × 42.4 mm)

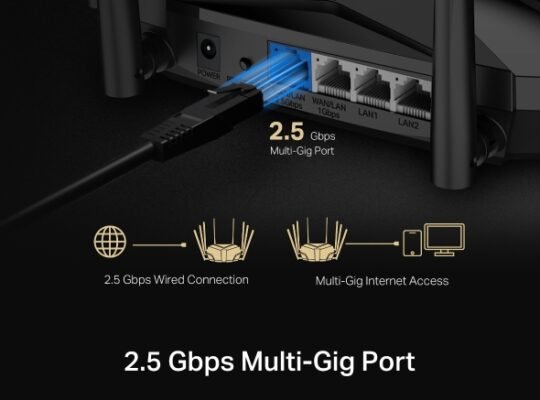

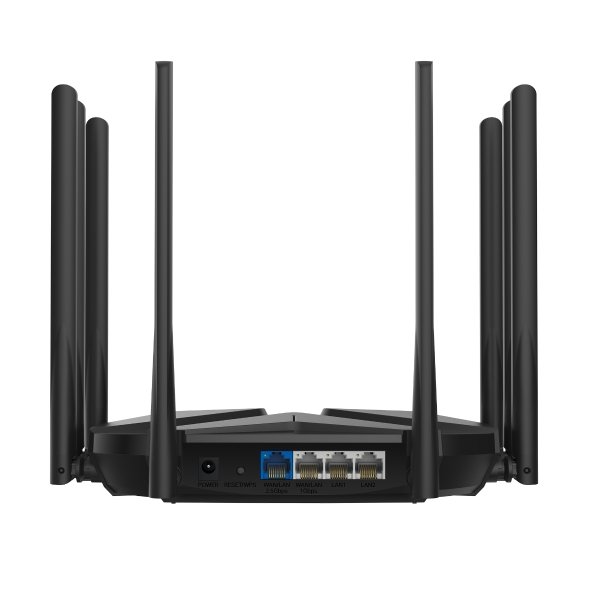

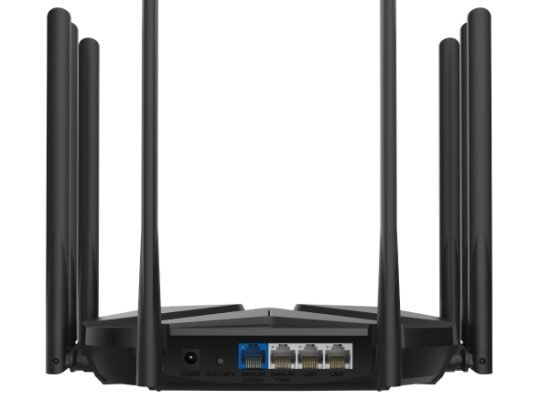

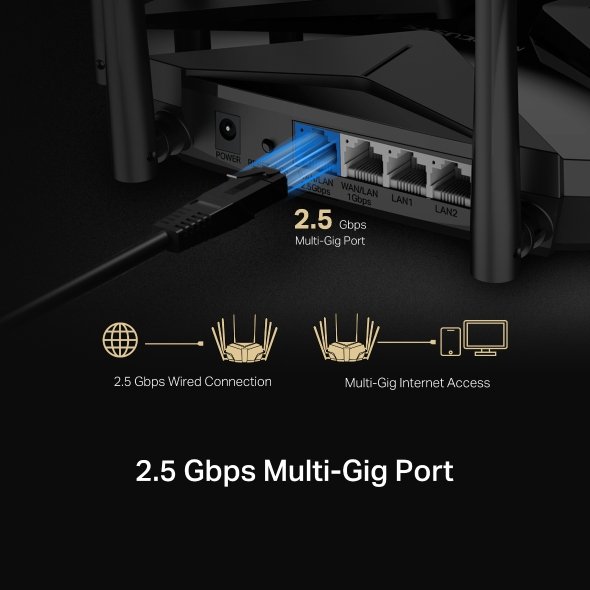

1× 2.5 Gbps WAN/LAN Port + 1× Gigabit WAN/LAN Port + 2× Gigabit LAN Ports

Reset/WPS Button

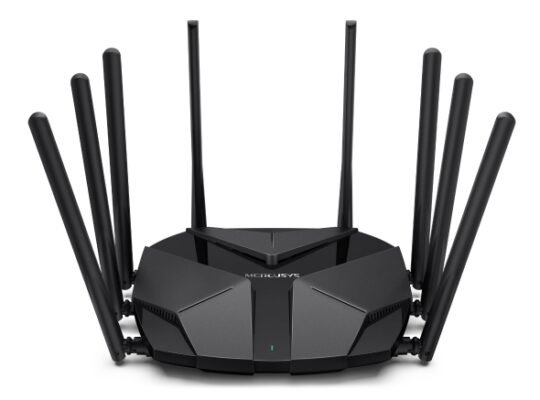

8× Fixed Omni-Directional Antennas

• AX6000 8-Stream Wi-Fi 6 Router MR90X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
