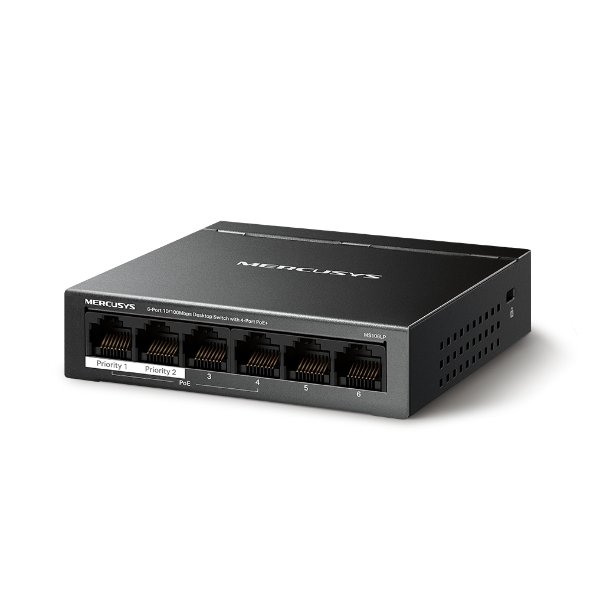

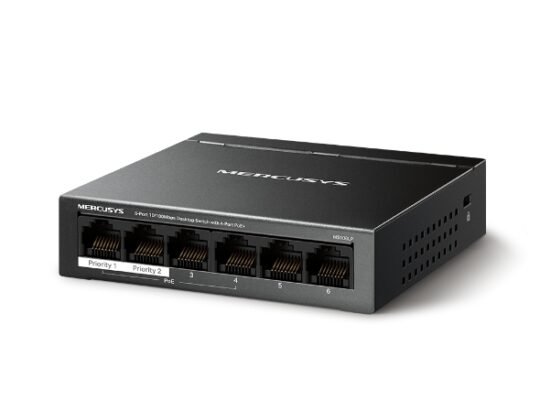

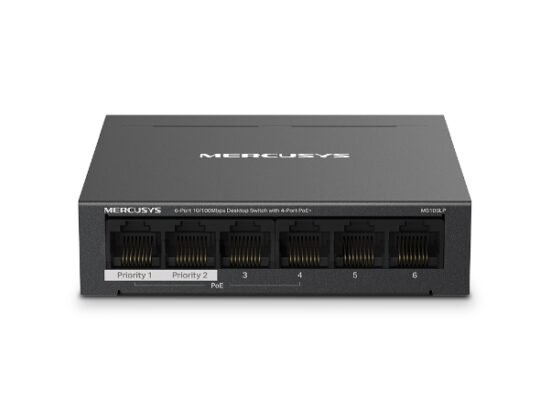

MERCUSYS MS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

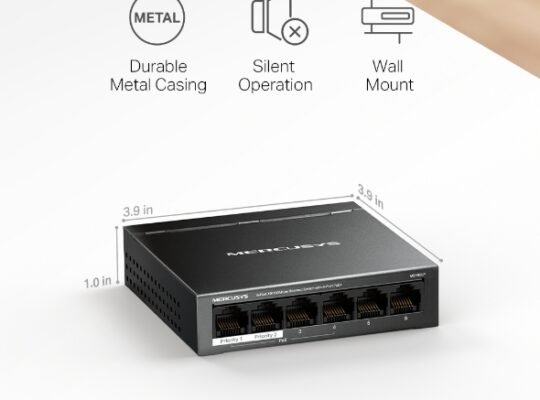

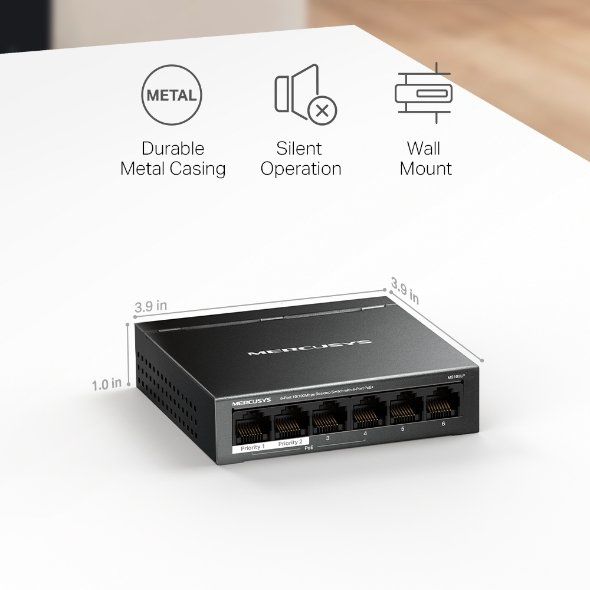

99.8*98*25mm

RJ45

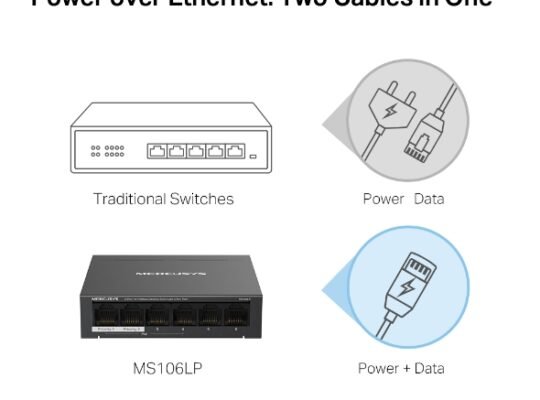

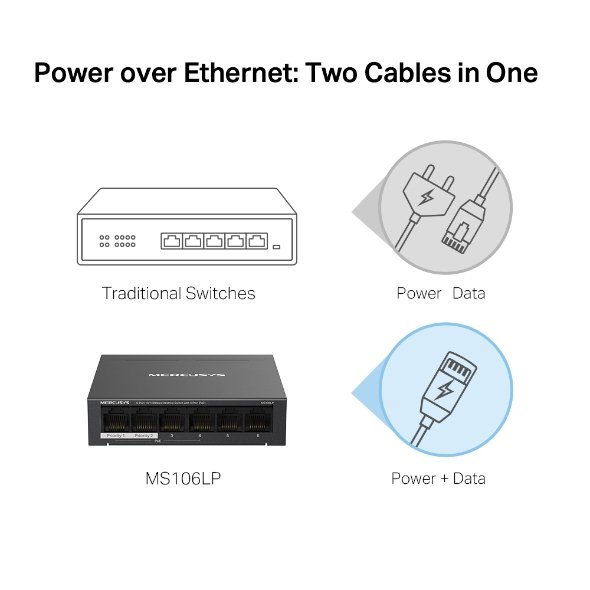

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4

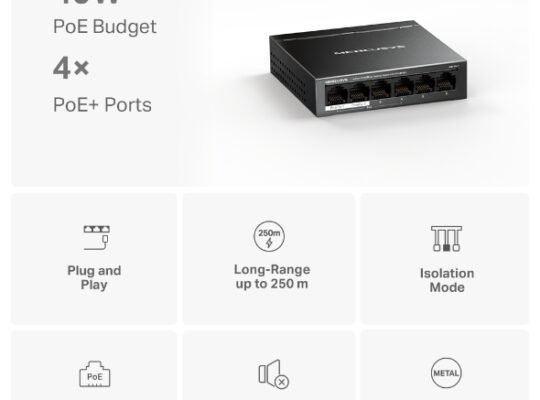

PoE Power Budget: 40 W

6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

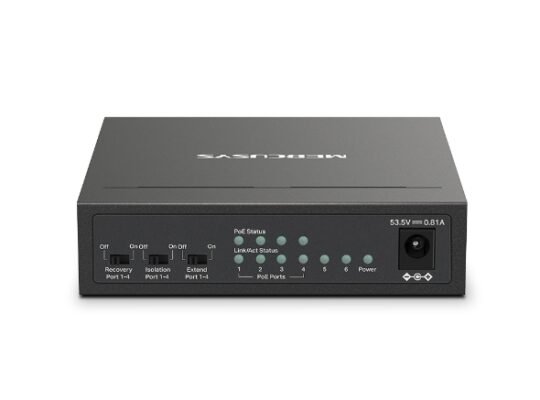

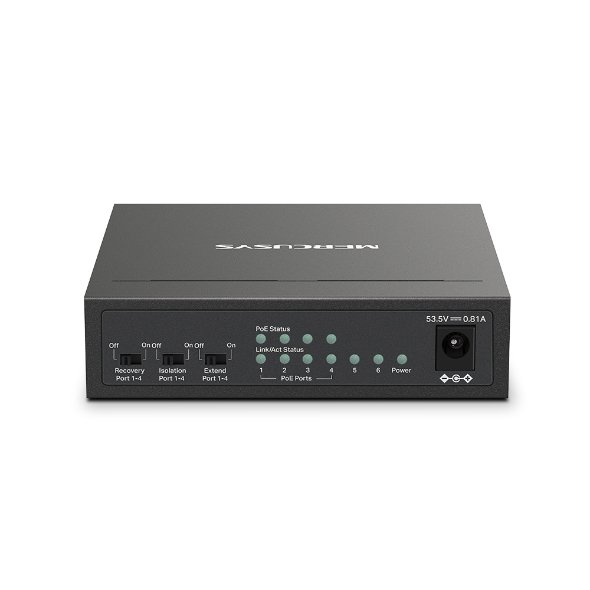

External Power Adapter (Output: 53.5V/0.81A)

Desktop

Wall Mount

IEEE 802.3x Flow Control

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

2 KB

2K

1.87W（220 V / 50 Hz, no PD connected）

44.8W（220 V / 50 Hz, with 40W PD connected）

6.34 BTH/h （no PD connected)

152.32 BTH/h（with 40W PD connected）

• 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)
• Power Adapter
• Quick Installation Guide

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
