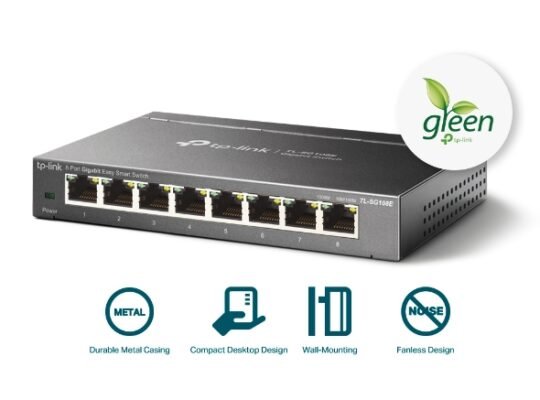

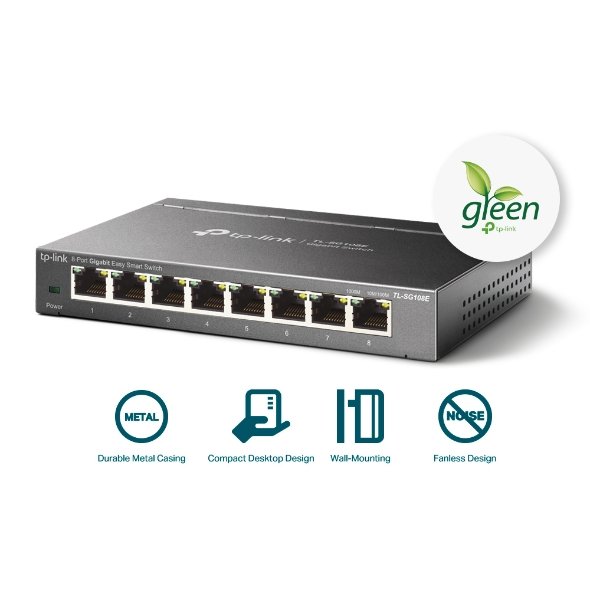

TP-LINK TL-SG108E 8-Port Gigabit Easy Smart Switch

Description

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

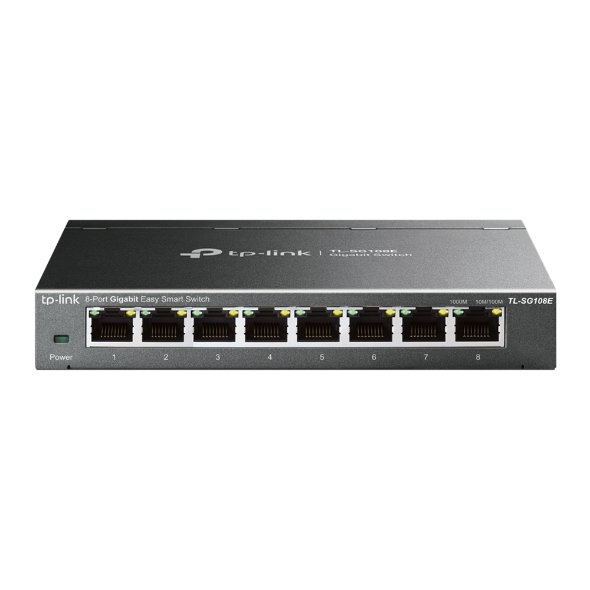

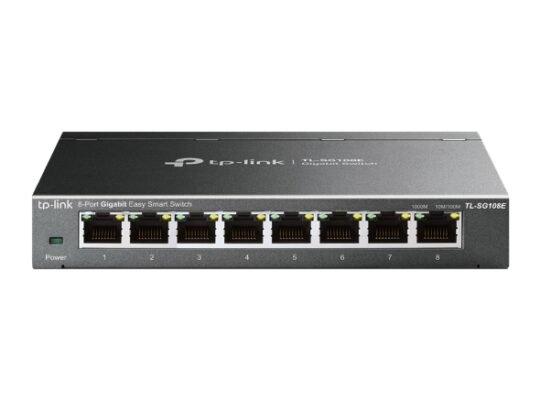

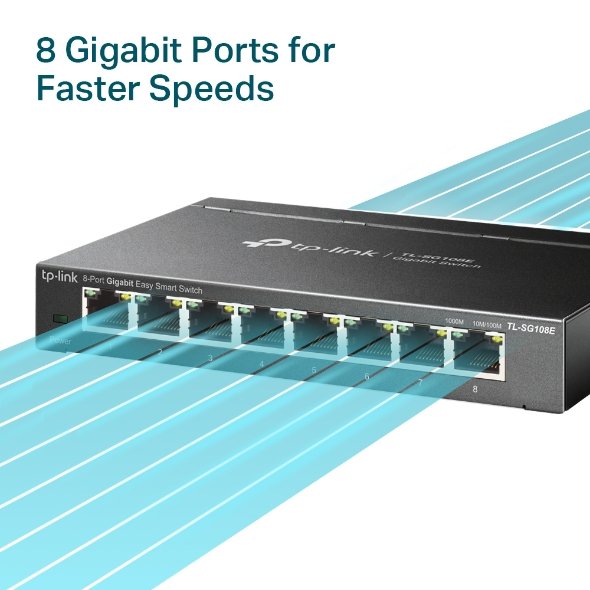

Interface	8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless

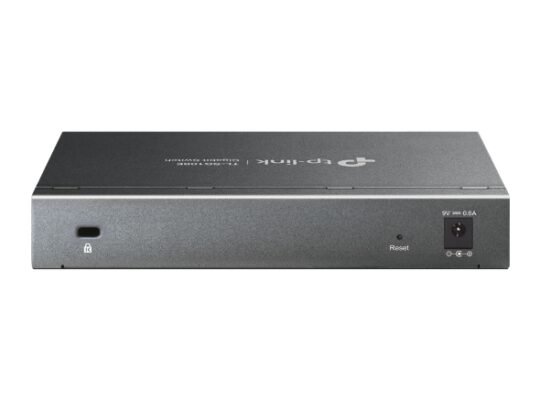

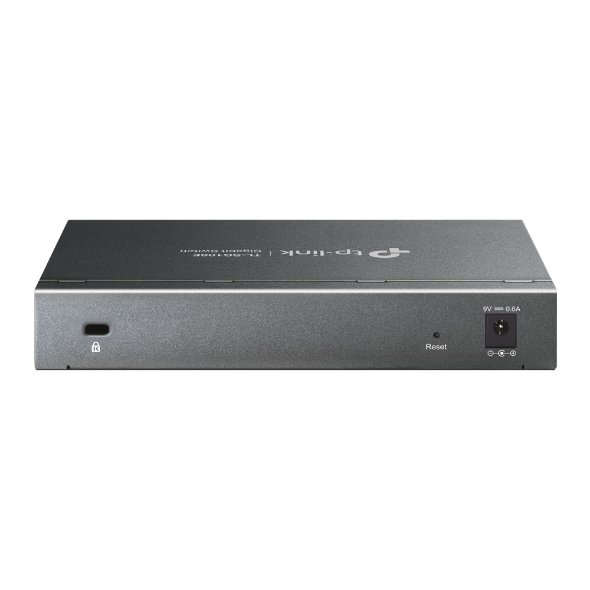

Power Supply	External Power Adapter(Output: 9VDC/0.6A)
Power Consumption	Maximum: 4.48W (220V/50Hz)
Dimensions ( W x D x H )	6.24.01.0 in. (15810125 mm)
Max Power Consumption	3.68 W (220 V/ 50 Hz)
Max Heat Dissipation	12.55 BTU/h

SOFTWARE FEATURES
Quality of Service	Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Transmission Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SG108E Power Cord Installation Guide Resource CD Rubber Feet
System Requirements	Microsoft® Windows® for running Utility
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
