Port TypeRJ45 port, Full duplex, MDI/MDI-X adaptive
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding ModeStore-and-forward switching
MAC Address Table4 K
Switching Capacity16 Gbps
Packet Forwarding Rate11.904 Mpps
Internal Cache1.5 Mbits
General
Dimensions (W × H × D)145 mm × 25.6 mm × 68.4 mm (5.7” × 1.0” × 2.7”)
ShellMetal material, fan-free design
Gross Weight0.38 kg (0.84 lb)
Net Weight0.25 kg (0.60 lb)
Operating Temperature0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
Storage Temperature–40 ˚C to 85 ˚C (–40 ˚F to 185 ˚F)
Storage Humidity5% to 95% (no condensation)

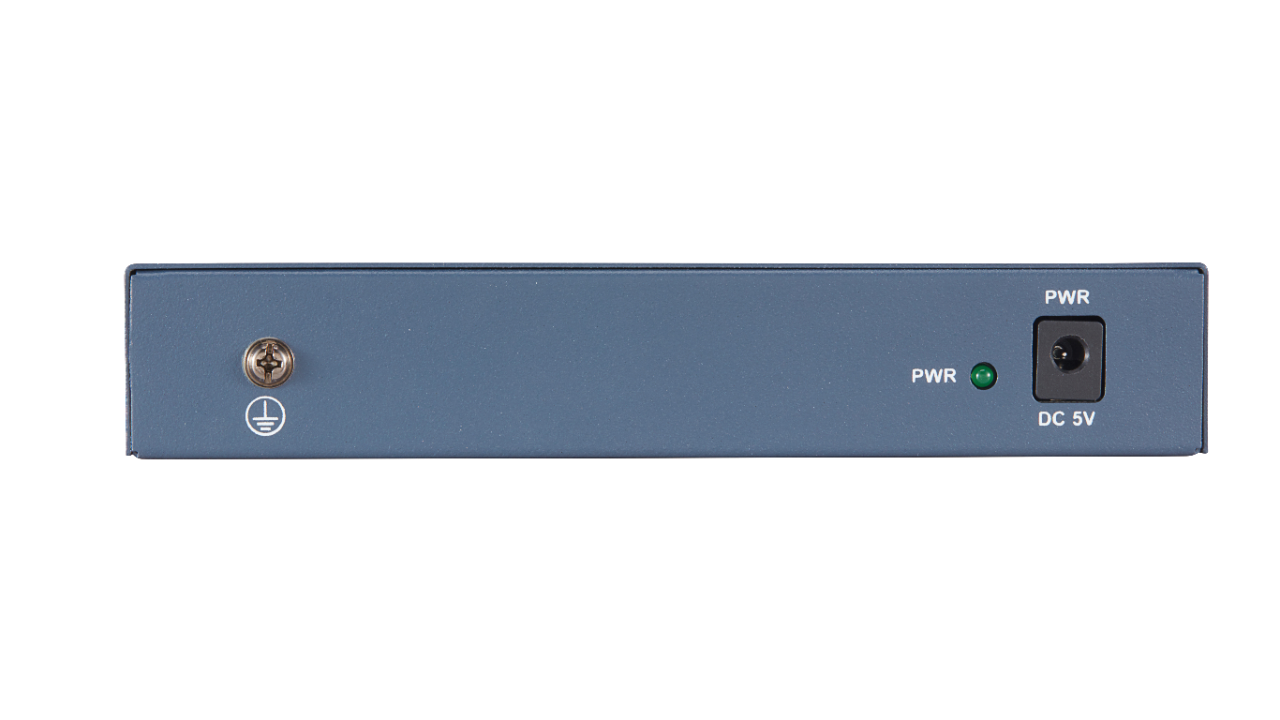

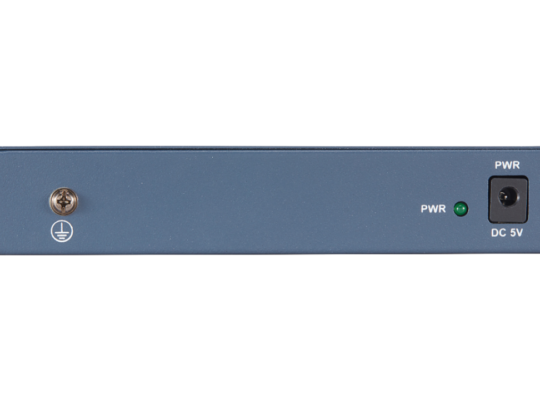

Power Supply5 VDC，1 A
Approval
EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 13)
SafetyUL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2023)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2012)
