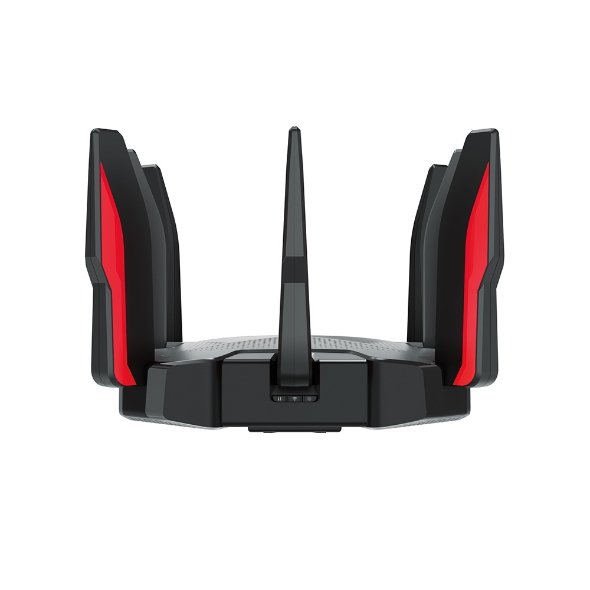

TP-LINK Archer GX90 AX6600 Tri-Band Wi-Fi 6 Gaming Router

Description

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX6600 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	4 Bedroom Houses 8× Detachable High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity	Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth
Working Modes	Router Mode Access Point Mode

HARDWARE
Processor	1.5 GHz Quad-Core CPU
Ethernet Ports	1× 2.5 Gbps WAN/LAN Port 1× Gigabit WAN/LAN Port 3× Gigabit LAN Ports
USB Support	1× USB 3.0 Port 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons	Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
Power	12 V ⎓ 5 A

SECURITY
WiFi Encryption	WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log
Guest Network	2× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN PPTP

SOFTWARE
Protocols	IPv4 IPv6
Game Center	Game Accelerator Detects and optimizes gaming streams to keep latency as low as possible Game Statistics Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail Game Protector Keep your accounts and system safe with HomeCare™ antivirus protection
Service Kits	HomeCare™ Learn More>
OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products>
Parental Controls	HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	Game Accelerator QoS. QoS by Device HomeCare™ QoS QoS by Application
Cloud Service	Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage Check Web Emulator>

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Java-enabled browser Cable or DSL Modem (if needed) Subion with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Java-enabled browser

Cable or DSL Modem (if needed)

Subion with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity	5 GHz-1: 11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm 11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm 11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm 11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm 11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm 11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm 11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm 5 GHz-2 (Gaming Band): 11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm 11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm 11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm 11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm 11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm 11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm 11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm 11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm 11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm 2.4 GHz: 11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm 11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm 11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm 11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm 11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm 11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm

TEST DATA

WiFi Transmission Power

CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

WiFi Reception Sensitivity

5 GHz-1:
11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm
11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm
11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm
11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm
5 GHz-2 (Gaming Band):
11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm
11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm
11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm
11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm
2.4 GHz:
11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm
11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm
11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm

PHYSICAL
Dimensions (W×D×H)	8.3 × 8.3 × 2.0 in (212 × 212 × 51.8 mm)
Package Contents	Wi-Fi Router Archer GX90 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
